Wednesday, March 25, 2009

The Continuous Re-fit

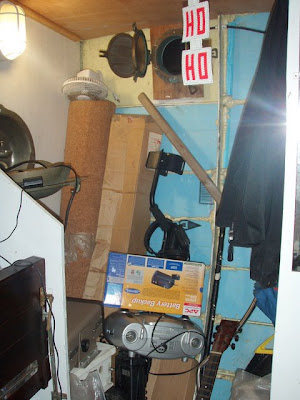

The closet area on the right side of the aft cabin looking forward. Because of all the steep angles in this area, it was near impossible to store much of anything in here. This is the 'Before' picture...


The in-between stage


'After'
Now, with all the shelves and stuff in, we can store lots of stuff here. My desk and the area around it have been turned into the navigation station for the ship. All that is displayed on the monitor above the desk, is also viewable at the helm station and on a monitor in the main salon. The area at the bottom right hand side of the picture has become a great place to store all the dirty clothes.


The aft cabin, looking at the back of the boat also needed suitable shelves and cabinets for storage. This and the next 2 pictures are the 'Before' stage.








Mid work, with the frames in....








FINISHED, with doors and handles! They still need to be painted and stained, but at least everything is put away and stowed in an organized manner! I waited over a year to have a place to put my clothes away, and I am very happy!


Bretton's carpentry skills are getting better and better with every project he undertakes! I am thankful for his desire to make everything perfect!!








Thanks to Paul and Bretton for all their hard work and dedication to Free Spirit!!!!!

posted by CT | 2:02 PM

1 Comments:

Blogger Gayle said...

It is amazing how you have transformed each area into functional beauty. It reminds me of when I lived in a camper for over a year...everything has to be in its place. Enjoy sailing in paradise!

3:30 PM

Post a Comment

<< Home

Introducing Propcalc 4.0

Use Propcalc to easily match your hull with your engine, transmission, and propeller
Put the known data in the top fields, then hit the Update button to get the answers.
Results, of course, should be verified by a Naval Architect or qualified surveyor.
Data is provided for three bladed propellers of average type
For two or four bladed props, use the modifiers shown below.

Fill out the fields as follows:

Vessel LWL (ft) = Waterline length
Vessel Disp (lbs) = Vessel displacement
(max) HP = Rated Engine Max HP
Engine RPM max = Engine RPM at Max HP
Engine RPM cruise = Desired or estimated cruise rpm
(Cruise or Max) Kts = Speed to work the calculations for
Slip = Propeller efficience. 45% is average for a displacement cruiser.
Gear ratio = 1: Gear ratio of transmission
SL Ratio Adj. = This value will be added (or subtracted, if a negative value) to the calculated S/L ratio.

Key information:

If the "hp required" is greater than the "cruse HP", you have your cruise RPM set too low for your engine parameters.
If the "hp required" is significantly less than the "cruse HP", you have your cruise RPM set too high for your engine parameters.
If the "hp required" is greater than the "Max HP", then your target speed is too high for your engine/hull parameters.
The S/L ratio is calculated automaticaly based on your input. It can be adjusted if necessary, but normally it should be left alone.
If the calculated S/L ratio exceeds S/L MAX, then the results are likely to be non-predictive. Try a lower speed requirement.
SL Ratios of 1.1 - 1.4 are typical of displacement hulls. Semiplaning or planing hulls can go higher.

Typical propeller slip values:

Sailing auxiliary, barges, etc less than 9 Kts............45%
Heavy powerboats, workboats 9 - 15 Kts....................26%
Powerboats, Lightweight Cruisers 15 - 30 Kts..............24%
High speed planing boats 30 - 45 Kts......................20%
V bottom race boats 45 - 90 Kts...........................10%


Note:

it is possible to get irrational answers by irrational input , I.E specifying excessive speed for hull type and length
Any attempt to exceed hull speed (1.34 times the square root of the waterline length in feet) with a displacement hull are likely
to fail unless the hull is extremely fine (multihull) or otherwise exceptional. In such cases, an S/L adjustment would be in order.

2 and 4 bladed props:


For two bladed propellers, multiply the diameter by 1.05, and the pitch by 1.01
For four bladed propellers, multiply the diameter by .94, and the pitch by .98
PROPCALC
  Inputs:
Vessel LWL (ft) =
Vessel Disp (lbs) =
  (max) HP =
  Engine RPM max =
  Engine RPM cruise =
  (Cruise or Max) Kts =
  Slip =
  Gear ratio = 1:
  SL Ratio Adj. =

    Solutions:
  Prop rpm max =
  Prop rpm cruise =
  Pitch =
  Diameter =
  Static Thrust =
  Cruise HP =
  Cruise HP% =
  SL Ratio =
  DL Ratio =
  SL Max =
  HP Required =
