Sunday, April 29, 2007

P'tit Louis Gets A Make-Over

Our dear friends on P'tit Louis have started one of the final touches on their beautiful boat. A new paint job! Nathalie has done an amazing job, and kept a smile on through all the hard work of sanding/painting/sanding/painting/sanding/painting...... They had just replaced all of their windows with new 3/8" acrylic, so she covered them with tin foil to protect them from the sanding dust and paint spatters.

Drake pays a visit to Nathalie, preparing to work into the night while Olivier is away on business.

The first coat is almost on! This view is from the deck of Free Spirit.

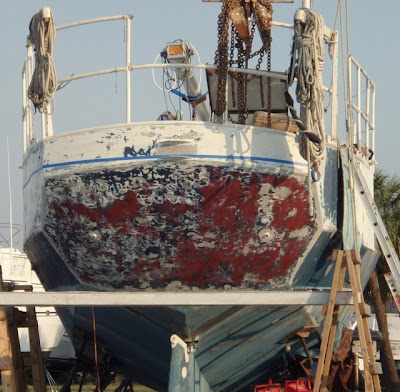

The cute sanded "butt" of P'tit Louis...

One side finished with 2 coats... There will be 4 coats applied before they launch, along with a coat of good bottom paint. Also, all the areas that are white, will be beige when it is finished.

The "New Butt" :-)

~Nathalie, as always, with a Smile ~

0 Comments:

Introducing Propcalc 4.0

Use Propcalc to easily match your hull with your engine, transmission, and propeller
Put the known data in the top fields, then hit the Update button to get the answers.
Results, of course, should be verified by a Naval Architect or qualified surveyor.
Data is provided for three bladed propellers of average type
For two or four bladed props, use the modifiers shown below.

Fill out the fields as follows:

Vessel LWL (ft) = Waterline length
Vessel Disp (lbs) = Vessel displacement
(max) HP = Rated Engine Max HP
Engine RPM max = Engine RPM at Max HP
Engine RPM cruise = Desired or estimated cruise rpm
(Cruise or Max) Kts = Speed to work the calculations for
Slip = Propeller efficience. 45% is average for a displacement cruiser.
Gear ratio = 1: Gear ratio of transmission
SL Ratio Adj. = This value will be added (or subtracted, if a negative value) to the calculated S/L ratio.

Key information:

If the "hp required" is greater than the "cruse HP", you have your cruise RPM set too low for your engine parameters.
If the "hp required" is significantly less than the "cruse HP", you have your cruise RPM set too high for your engine parameters.
If the "hp required" is greater than the "Max HP", then your target speed is too high for your engine/hull parameters.
The S/L ratio is calculated automaticaly based on your input. It can be adjusted if necessary, but normally it should be left alone.
If the calculated S/L ratio exceeds S/L MAX, then the results are likely to be non-predictive. Try a lower speed requirement.
SL Ratios of 1.1 - 1.4 are typical of displacement hulls. Semiplaning or planing hulls can go higher.

Typical propeller slip values:

Sailing auxiliary, barges, etc less than 9 Kts............45%
Heavy powerboats, workboats 9 - 15 Kts....................26%
Powerboats, Lightweight Cruisers 15 - 30 Kts..............24%
High speed planing boats 30 - 45 Kts......................20%
V bottom race boats 45 - 90 Kts...........................10%

Note:

it is possible to get irrational answers by irrational input , I.E specifying excessive speed for hull type and length
Any attempt to exceed hull speed (1.34 times the square root of the waterline length in feet) with a displacement hull are likely
to fail unless the hull is extremely fine (multihull) or otherwise exceptional. In such cases, an S/L adjustment would be in order.

2 and 4 bladed props:

For two bladed propellers, multiply the diameter by 1.05, and the pitch by 1.01
For four bladed propellers, multiply the diameter by .94, and the pitch by .98

PROPCALC
		Inputs:
Vessel LWL (ft) =
Vessel Disp (lbs) =
	(max) HP =
	Engine RPM max =
	Engine RPM cruise =
	(Cruise or Max) Kts =
	Slip =
	Gear ratio = 1:
	SL Ratio Adj. =

		Solutions:
	Prop rpm max =
	Prop rpm cruise =
	Pitch =
	Diameter =
	Static Thrust =
	Cruise HP =
	Cruise HP% =
	SL Ratio =
	DL Ratio =
	SL Max =
	HP Required =
