Thursday, March 13, 2008

Drake's Berth & The Pilot Berth

Drake's berth is on the Starboard side of the Salon and had to be insulated, and have tongue and groove installed before he moved in. Sounds easy, doesn't it?? Hmmmm....... Well, after finding a place for everything that was stored in there, washing it down with bleach water, sanding any exposed metal, applying a coat of U Prime to those areas, templating the spaces that needed foam, cutting the foam, foaming in the foam, and putting the tongue and groove in place; we could look back and say, "Wow, that was easy!"

:-)



Drake installing foam pieces.



Using the big boy tools!

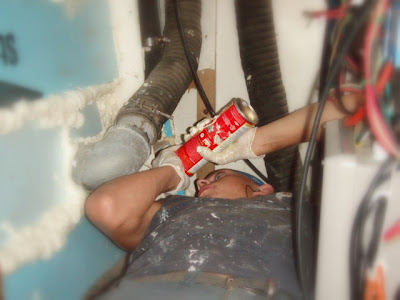

Shep spraying on the foam....

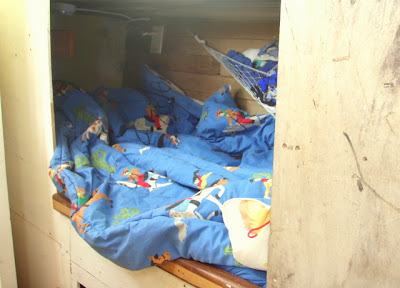

A view of the berth, all ready for Drake to sleep in!



A close-up shot of the sleeping bag Drake is so proud of :-) Thanks Sarah!!




The other major project in the salon happened to include a saws all...........and......



looks of utter shock!
Actually, we decided to make the aft cabin and the pilot berth completely separate from one another. It used to be that you entered the aft cabin, went to port, and were in the pilot berth area. We installed a wall to close off that path, and then cut a doorway from the galley into the cabin.



Doors from the galley side.



The hand made, ingenious magnetic latch.

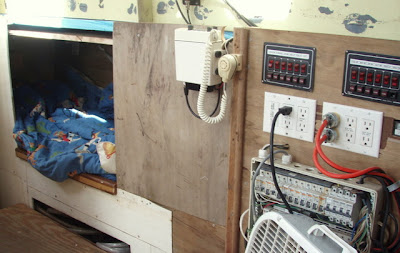

Looking into the galley from the pilot berth.



posted by CT | 11:09 PM

0 Comments:

Post a Comment

<< Home

Introducing Propcalc 4.0

Use Propcalc to easily match your hull with your engine, transmission, and propeller
Put the known data in the top fields, then hit the Update button to get the answers.
Results, of course, should be verified by a Naval Architect or qualified surveyor.
Data is provided for three bladed propellers of average type
For two or four bladed props, use the modifiers shown below.

Fill out the fields as follows:

Vessel LWL (ft) = Waterline length
Vessel Disp (lbs) = Vessel displacement
(max) HP = Rated Engine Max HP
Engine RPM max = Engine RPM at Max HP
Engine RPM cruise = Desired or estimated cruise rpm
(Cruise or Max) Kts = Speed to work the calculations for
Slip = Propeller efficience. 45% is average for a displacement cruiser.
Gear ratio = 1: Gear ratio of transmission
SL Ratio Adj. = This value will be added (or subtracted, if a negative value) to the calculated S/L ratio.

Key information:

If the "hp required" is greater than the "cruse HP", you have your cruise RPM set too low for your engine parameters.
If the "hp required" is significantly less than the "cruse HP", you have your cruise RPM set too high for your engine parameters.
If the "hp required" is greater than the "Max HP", then your target speed is too high for your engine/hull parameters.
The S/L ratio is calculated automaticaly based on your input. It can be adjusted if necessary, but normally it should be left alone.
If the calculated S/L ratio exceeds S/L MAX, then the results are likely to be non-predictive. Try a lower speed requirement.
SL Ratios of 1.1 - 1.4 are typical of displacement hulls. Semiplaning or planing hulls can go higher.

Typical propeller slip values:

Sailing auxiliary, barges, etc less than 9 Kts............45%
Heavy powerboats, workboats 9 - 15 Kts....................26%
Powerboats, Lightweight Cruisers 15 - 30 Kts..............24%
High speed planing boats 30 - 45 Kts......................20%
V bottom race boats 45 - 90 Kts...........................10%


Note:

it is possible to get irrational answers by irrational input , I.E specifying excessive speed for hull type and length
Any attempt to exceed hull speed (1.34 times the square root of the waterline length in feet) with a displacement hull are likely
to fail unless the hull is extremely fine (multihull) or otherwise exceptional. In such cases, an S/L adjustment would be in order.

2 and 4 bladed props:


For two bladed propellers, multiply the diameter by 1.05, and the pitch by 1.01
For four bladed propellers, multiply the diameter by .94, and the pitch by .98
