Wednesday, December 26, 2007

The Focsul

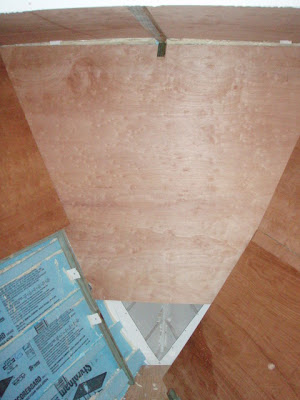

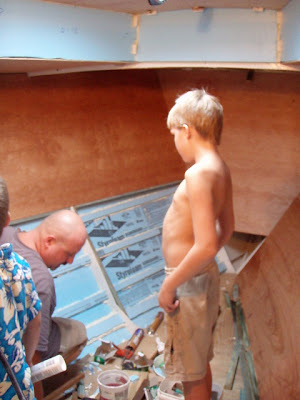

Tamer and the boys getting the last of the blue insulating foam installed, and finishing with the luan.

After the blue foam and luan were in, the work was just beginning!



Almost ready for the trim!


On Shep's resume, there will be an entire section under Experience for templating... In fact, we have already nicknamed him the "King of Templating" !



Tamer, showing off the trim that will be placed over the stringers...



The faming for the bed, and most of the trim installed... Looking fantastic, huh?

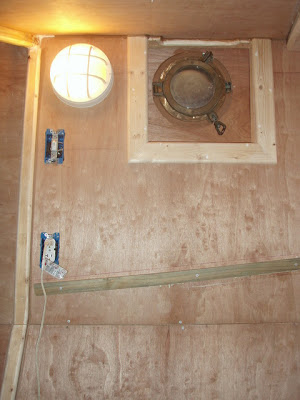

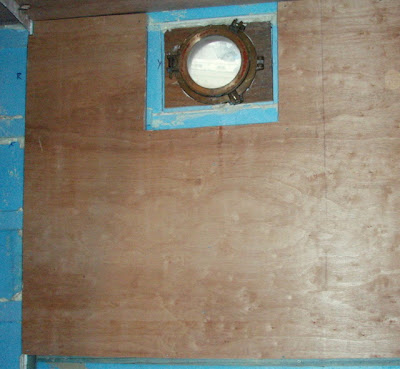

The finish work on the portholes was very tricky. As always, Tamer being the genius that he is, figured it out!

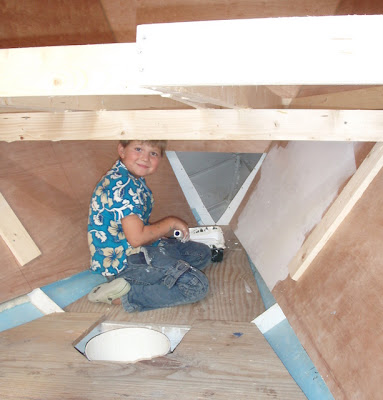

Drake, helping Auntie Nina paint the first coat of primer. He was a huge help in the hard to reach areas!



Working hard!!



Primer, all finished!! What an amazing transformation :-)

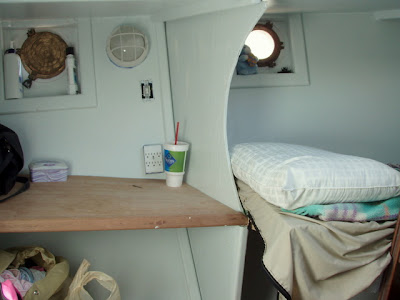

Starboard Side ~ Valin's room

There needs to be stain put on both the desks, and a wall built through the middle of the berths for privacy. We painted it a very light aquamarine color... You can barely notice the color, but it is really bright now. I am super proud of the carpentry that Tamer did in here, because it looks amazing. It is hard to imagine that this entire cabin was taken down to steel in all areas. It will be awesome to have the whole boat to this point of completion!!

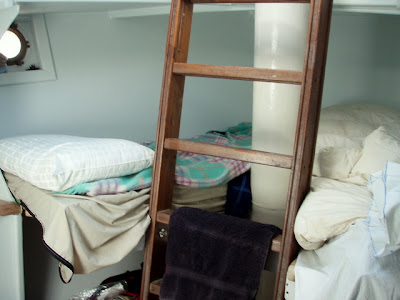

Port Side ~ Blayde's room
The dividing wall will go from the mast to the forward bulkhead wall.



0 Comments:

Post a Comment

Links to this post:

Create a Link

<< Home

Introducing Propcalc 4.0

Use Propcalc to easily match your hull with your engine, transmission, and propeller
Put the known data in the top fields, then hit the Update button to get the answers.
Results, of course, should be verified by a Naval Architect or qualified surveyor.
Data is provided for three bladed propellers of average type
For two or four bladed props, use the modifiers shown below.

Fill out the fields as follows:

Vessel LWL (ft) = Waterline length
Vessel Disp (lbs) = Vessel displacement
(max) HP = Rated Engine Max HP
Engine RPM max = Engine RPM at Max HP
Engine RPM cruise = Desired or estimated cruise rpm
(Cruise or Max) Kts = Speed to work the calculations for
Slip = Propeller efficience. 45% is average for a displacement cruiser.
Gear ratio = 1: Gear ratio of transmission
SL Ratio Adj. = This value will be added (or subtracted, if a negative value) to the calculated S/L ratio.

Key information:

If the "hp required" is greater than the "cruse HP", you have your cruise RPM set too low for your engine parameters.
If the "hp required" is significantly less than the "cruse HP", you have your cruise RPM set too high for your engine parameters.
If the "hp required" is greater than the "Max HP", then your target speed is too high for your engine/hull parameters.
The S/L ratio is calculated automaticaly based on your input. It can be adjusted if necessary, but normally it should be left alone.
If the calculated S/L ratio exceeds S/L MAX, then the results are likely to be non-predictive. Try a lower speed requirement.
SL Ratios of 1.1 - 1.4 are typical of displacement hulls. Semiplaning or planing hulls can go higher.

Typical propeller slip values:

Sailing auxiliary, barges, etc less than 9 Kts............45%
Heavy powerboats, workboats 9 - 15 Kts....................26%
Powerboats, Lightweight Cruisers 15 - 30 Kts..............24%
High speed planing boats 30 - 45 Kts......................20%
V bottom race boats 45 - 90 Kts...........................10%


Note:

it is possible to get irrational answers by irrational input , I.E specifying excessive speed for hull type and length
Any attempt to exceed hull speed (1.34 times the square root of the waterline length in feet) with a displacement hull are likely
to fail unless the hull is extremely fine (multihull) or otherwise exceptional. In such cases, an S/L adjustment would be in order.

2 and 4 bladed props:


For two bladed propellers, multiply the diameter by 1.05, and the pitch by 1.01
For four bladed propellers, multiply the diameter by .94, and the pitch by .98


PROPCALC
  Inputs:
Vessel LWL (ft) =
Vessel Disp (lbs) =
  (max) HP =
  Engine RPM max =
  Engine RPM cruise =
  (Cruise or Max) Kts =
  Slip =
  Gear ratio = 1:
  SL Ratio Adj. =

    Solutions:
  Prop rpm max =
  Prop rpm cruise =
  Pitch =
  Diameter =
  Static Thrust =
  Cruise HP =
  Cruise HP% =
  SL Ratio =
  DL Ratio =
  SL Max =
  HP Required =
