Friday, April 20, 2007

Cargo hold cover, Part 2

After the cargo hold cover had been reconditioned, it had to be lifted back onto the boat and put into place. It weighs about 500 lbs, so this is no trivial task.

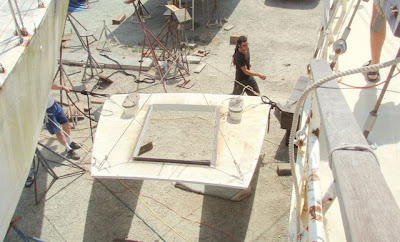

Moving the cover to a new position for the lift.
From left to right; Tamer, Patty, Olivier, Mark, Matt, Glenn, and in the middle is Elliot.

Flipping it over

Planning the feat as the helpers listen.

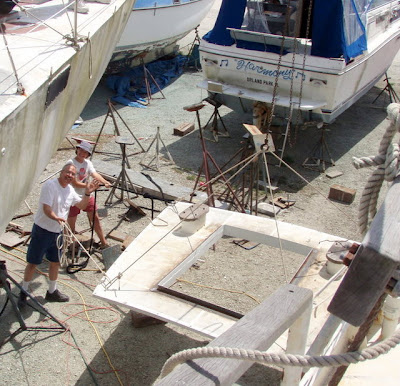

A four point lift with tag lines was selected. Mark of Fortuna and Nathalie of P'tit Louis shown here.

Matt of Drummer doing something...

Patty of Fortuna tags the load from her deck.

Elliot, part of the P'tit Lois crew, handles the heavy hatch on Free Spirit's deck.

Mark, helping to fit the hatch as Matt pulls it into place.

The hatch in place, three happy boys pose for the camera.

0 Comments:

Introducing Propcalc 4.0

Use Propcalc to easily match your hull with your engine, transmission, and propeller
Put the known data in the top fields, then hit the Update button to get the answers.
Results, of course, should be verified by a Naval Architect or qualified surveyor.
Data is provided for three bladed propellers of average type
For two or four bladed props, use the modifiers shown below.

Fill out the fields as follows:

Vessel LWL (ft) = Waterline length
Vessel Disp (lbs) = Vessel displacement
(max) HP = Rated Engine Max HP
Engine RPM max = Engine RPM at Max HP
Engine RPM cruise = Desired or estimated cruise rpm
(Cruise or Max) Kts = Speed to work the calculations for
Slip = Propeller efficience. 45% is average for a displacement cruiser.
Gear ratio = 1: Gear ratio of transmission
SL Ratio Adj. = This value will be added (or subtracted, if a negative value) to the calculated S/L ratio.

Key information:

If the "hp required" is greater than the "cruse HP", you have your cruise RPM set too low for your engine parameters.
If the "hp required" is significantly less than the "cruse HP", you have your cruise RPM set too high for your engine parameters.
If the "hp required" is greater than the "Max HP", then your target speed is too high for your engine/hull parameters.
The S/L ratio is calculated automaticaly based on your input. It can be adjusted if necessary, but normally it should be left alone.
If the calculated S/L ratio exceeds S/L MAX, then the results are likely to be non-predictive. Try a lower speed requirement.
SL Ratios of 1.1 - 1.4 are typical of displacement hulls. Semiplaning or planing hulls can go higher.

Typical propeller slip values:

Sailing auxiliary, barges, etc less than 9 Kts............45%
Heavy powerboats, workboats 9 - 15 Kts....................26%
Powerboats, Lightweight Cruisers 15 - 30 Kts..............24%
High speed planing boats 30 - 45 Kts......................20%
V bottom race boats 45 - 90 Kts...........................10%

Note:

it is possible to get irrational answers by irrational input , I.E specifying excessive speed for hull type and length
Any attempt to exceed hull speed (1.34 times the square root of the waterline length in feet) with a displacement hull are likely
to fail unless the hull is extremely fine (multihull) or otherwise exceptional. In such cases, an S/L adjustment would be in order.

2 and 4 bladed props:

For two bladed propellers, multiply the diameter by 1.05, and the pitch by 1.01
For four bladed propellers, multiply the diameter by .94, and the pitch by .98

PROPCALC
		Inputs:
Vessel LWL (ft) =
Vessel Disp (lbs) =
	(max) HP =
	Engine RPM max =
	Engine RPM cruise =
	(Cruise or Max) Kts =
	Slip =
	Gear ratio = 1:
	SL Ratio Adj. =

		Solutions:
	Prop rpm max =
	Prop rpm cruise =
	Pitch =
	Diameter =
	Static Thrust =
	Cruise HP =
	Cruise HP% =
	SL Ratio =
	DL Ratio =
	SL Max =
	HP Required =
