Wednesday, December 26, 2007

The Final Painting

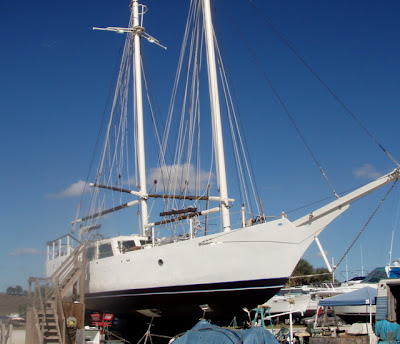

Here she is, with the first and only coat of hard (non ablative) black bottom paint. Although the upper black stripe is the boot stripe, and over the course of finishing the painting, did get 2 more coats.



Painted with the first coat of red.

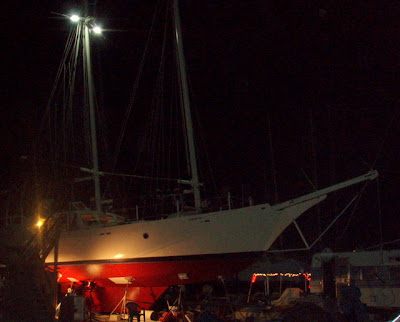

Working into the wee hours once again, the bottom paint crew (see picture below) diligently applies the 2nd coat of red.



The bottom paint crew :-)

P.S. Before the first coat of bottom paint was applied, the whole bottom had to have not yet dry (tacky) amerlock to adhere to. The white spot above, is one of 2 that were missed during that coat. They were painted when the areas under the stands were done.

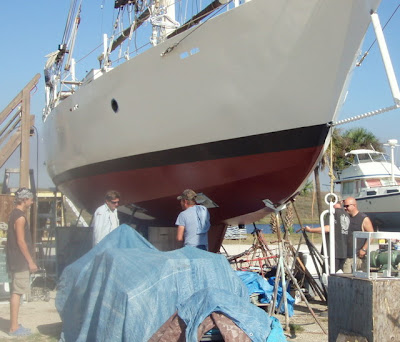

The boat yard workers consist of Proctor, who operates the travel lift, and Jon & James who do all the rest of the miscellaneous work around the place. They are the only ones who are allowed to move the stands that hold up the boat.



Me, sanding the spots that had been hidden under the stands for the past year. For those 7 areas plus the 2 missed spots, the process starts all over again.
